Periodical Asynchronous Requests in VFP Forms

Author: Josip Zohil, Koper, Slovenija,


Creating a client (VFP) application, which would be continuously calling the server for data changes on the server in asynchronous (no blocking) mode, would be difficult or perhaps even impossible to do in VFP. In this article I present a COM object in C# which downloads the data from the network computer in asynchronous mode and periodically refresh the controls on the VFP form.

The VFP blocking


When working with local buffered data, VFP can refresh it. But also in this case the first network download of data (the fill of buffered cursors) can exceed 30 seconds. While the download is active, the form (and also the whole VFP client) are blocked. To get around this blocking state we fill the form's control with asynchronously downloaded data. When we start an asynchronous call for data, the call returns immediately. The form (and also the application) is free to perform some other task. The call is executing in parallel with this task, for example in parallel:

-         with the start of the application,

-         with the initialization of the form,

-         with the click on the button….

In VFP we can only simulate an asynchronous download of data, for example, on user action or on timer click we download a small chunk of data and add it to the existing local data. So the application is blocking only for a small, imperceptible time period.

In .Net Framework we can built COM classes with asynchronous capabilities able to communicate with a VFP application (1), (2), (3). The COM events have to be consumed in VFP, so an OLE public object is added to the VFP application to communicate with the Net COM object. Usually we test the COM classes with the test application (client) built in .Net Framework.

The asynchronous data download from the database


Let us built the COM object. Its goal is to connect to the database on a local or network computer, and call a stored procedure in it. The call is made asynchronously. When the results are returned, the COM objects pass the results to the calling client as a string containing a dataset and its schema. Additionally the server (COM) also fire the event OnIsCompleted, to inform the calling client the results are ready for use.

In the references of this article we can find a detailed description on how to create a COM object in C#, so we only present the final code in C# (Listing 1). Don’t forget the ProgId and the public interface contained in the class!


using System;

using System.Collections.Generic;

using System.Text;

using System.Data;

using System.Xml ;

using System.Data.SqlClient;

using System.Configuration;

using System.Runtime.InteropServices;

using System.Runtime.InteropServices.ComTypes;

using System.Runtime.InteropServices.Expando;

using System.Data.OleDb;

using System.Windows.Forms;

using System.IO;

using System.Diagnostics;

namespace InteroperCL





    public class Class1


        public delegate void FormEventHandler(object source,string respStr, bool isComplete);

        public event FormEventHandler IsCompleted;

        private delegate OleDbCommand  delReader(string methodName,string name);

        private delReader drinvoke;

        private object _objName;// the object reference to be used on the client (subscriber)

        string _name = "" ;

        string _methodName = "";

        static private string _error="";

        private DataSet _dataT;

        string _connect = "";

        string _respStr=""; //Response string (XML)

        DataSet ds = null;

        DataTable dt = null;

        int _timer1_Interval = 10000;

        System.Timers.Timer timer1;

        public  Class1()


            ds = new DataSet();

            dt = new DataTable();


            timer1 = new System.Timers.Timer();

            timer1.Elapsed += new System.Timers.ElapsedEventHandler(timer1_Elapsed);

            timer1.AutoReset = true;

            this.timer1.Interval = Convert.ToInt32(_timer1_Interval.ToString());

            this.timer1.Enabled = false;

            OnIsCompleted(this,"", false); //notify the subscriber (client)


        public void OnIsCompleted(object source,string respStr, bool isComp)


            if (IsCompleted != null) IsCompleted(source,respStr, isComp);


        public void CallDb(string methodName,string name)


            this._name = name;

            this._methodName = methodName;

            OnIsCompleted(this,"", false);

            this.timer1.Interval =               Convert.ToInt32(_timer1_Interval.ToString());

            if (this.timer1.Interval < 10) this.timer1.Interval = 10000;

            this.timer1.Enabled = true;

            drinvoke = new delReader(this.DataBaseCall);

            drinvoke.BeginInvoke(methodName,name, this.EndDatabaseCall, null);

       //Control is returned to the client program that Call this COM.


        private  OleDbCommand  DataBaseCall(string methodName,string name)


        OleDbConnection connection = new OleDbConnection(this.Connect );


           OleDbCommand  command = new OleDbCommand();

            command.Connection = connection;

            command.CommandText = methodName+"('"+name+"')";

            command.CommandType = CommandType.StoredProcedure;

            return command;


        private  void EndDatabaseCall(IAsyncResult result)


            OleDbCommand command = drinvoke.EndInvoke(result);



            OleDbDataReader reader = command.ExecuteReader();



            dt.Load(reader, LoadOption.OverwriteChanges);

             _dataT = ds;

  //we add the schema to the dataset

            MemoryStream st = new MemoryStream();

  //convert the dataset to bytes

            ds.WriteXml(st, XmlWriteMode.WriteSchema);

            st.Position = 0;

            Byte[] buf = new byte[st.Length];

            st.Read(buf, 0, buf.Length);



            _respStr = Encoding.UTF8.GetString(buf, 0, buf.Length);

  //     MessageBox.Show("DOM document XML with schema:"+_respStr);


            catch (Exception ex)


                _error= "Error: " + ex.Message.ToString();




                #region Cleanup






                //notify the subscriber (client)

                OnIsCompleted(this,_respStr, true); //update the controls, write the log and other things designed by the caller (subscriber)



        public void timer1_Stop()


            this.timer1.Enabled = false;


        private void timer1_Elapsed(object sender,

              System.Timers.ElapsedEventArgs e)


            this.CallDb(this._methodName,this._name)  ; //request the data on elapsed time interval


            this.timer1.Enabled = true;


public int Timer1_Interval


            get { return this._timer1_Interval;}

            set { this._timer1_Interval = value;}


        public object ObjName


            get { return this._objName; }

            set { this._objName = value;}


        public string RespStr


            get { return this._respStr; }

            set { this._respStr = value;}


        public DataSet DataT


            get { return this._dataT; }

            set { this._dataT = value;}


        public string Name


            get { return this._name; }

            set { this._name = value;}


        public string MethodName


            get { return this._methodName;}

            set { this._methodName = value;}


        public string Error


            get { return _error;}

            set { _error = value;}


        public string Connect


            get { return _connect; }

            set { _connect = value;}

        }    }


    public interface MyEvents


//the comm interface for the eventhandler IsCompleted

//On the client (VFP) side we use the command EVENTHANDLER and the

//pubblic OLE class MyEvents to comunicate with the COM generated from this class


        void IsCompleted(object source,string respStr, bool icComplete);




Listing 1. The C# class (Class1) for the periodical asynchronous call to the database (COM with ProgID and ComInterface)


The COM object has similar function as a VFPOLEDB driver. The client applications call the method CallDb in the Class1 (its instance is the COM object) and pass to the COM the name of the database store procedure to call and its parameter. The classes expose also the public field _connect (the name of the connection to the database from which we request the data) and  _timer1_Interval (the time interval on which is fired the call to the database).

The command:

OnIsCompleted(this,««, false)

fire the event OnIsCompleted and using the delegate inform the client the call to the database is stared (the third parameter has the value false-start the call).

drinvoke = new delReader(this.DataBaseCall)

The line above creates an instance of the delegate delReader. The object drinvoke has to call the method DataBaseCall. I start the asynchronous call to the database invoking the delegate:

drinvoke.BeginInvoke(methodName,name, this.EndDatabaseCall, null).

The results of this invocation are passed to the method EndDatabaseCall.

The method DataBaseCall opens the connection, constructs the OleDbCommand and returns it.

The EndDatabaseCall method is responsible to catch the download from the database. Using the object result (of type IasyncResult) we access the command object:

OleDbCommand command = drinvoke.EndInvoke(result)

and execute the datareader call to the database:

OleDbDataReader reader = command.ExecuteReader().

The reader object fill a datatable dt using the Load method:

dt.Load(reader, LoadOption.OverwriteChanges).

Using memorystream I add a schema to the dataset ds, and generate a string (respStr) containing a dataset and its schema. The command:

OnIsCompleted(this,_respStr, true)

fire the event IsCompleted (based on the delegate FormEventHandle) and send to the subscribers (clients) three parameters:

- the reference to the object that start the asynchronous operation,

- the string containing the dataset,

- the information the request is completed(true).


I have declared two delegates. With the first I collect the data from the client and control the process of retrieving data from the database. It has two parameters and returns an OleDbComand object:

private delegate OleDbCommand  delReader(string methodName,string name).

With the second I have passed (sent) the data to the client (subscriber). It has three parameters the client can receive:

public delegate void FormEventHandler(object source,string respStr, bool isComplete).

I initialize a timer in the constructor of the Class1 and the method CallDB enable it:

this.timer1.Enabled = true.

At elapsed time the  timer1_Elapsed event is fired:

timer1.Elapsed += new System.Timers.ElapsedEventHandler(timer1_Elapsed).

This event makes a new call to the database, enable the timer and so on.

The windows application – testing the COM


Normally we test the COM in the environment it was created. I have created a windows application in Visual Studio 2005, with a windows form. The application has a reference to the COM and in the form class there is a keyword using InteroperCL.

On the windows form I have put a button, the grid control, and two text boxes:

- txtRefresh  has the vale of the refresh time interval, for example 20000 (20 seconds),

- txtName has the value of the least document number we retrieve from the data base.

The query in the stored procedure is something like this: select docNo,docType,wareID from documents where docNo>=txtName. It returns the created cursor as the RESULTSET.

The project Windows Test  and the class InteroperCL.Class1 are in the download.


The VFP client

The OLE public class


The VFP client is a »normal« VFP client enriched with an OLE public class, in our case a VFP program with the name MyEvents.prg (Listing 2). It is able to access the data (results of COM events) generated by the COM server and pass the data to VFP objects, in our case the VFP form. Remember that in VFP we access the COM in a slightly different manner as we did in .Net!

Using the keyword IMPLEMENTS I have told the class to catch the events delivered by the COM object (the class InteroperCL.Class1) with its interface MyEvents (see Listing 1). The procedure MyEvents_IsCompleted has three parameters sent by the command OnIsCompleted in the COM, see Listing 1. The procedures parameter isComplete inform the VFP client the response data from the server is collected. The respStr pass to the client the arrived string containing a dataset and its XML schema:

source.ObjName.respStr =respStr.

The reference source.ObjName is in our case the VFP form with two added properties respStr and iscompleted, as will be explained later.


*myevents.prg  InteroperCL.Class1 is the COM server (publisher)


IMPLEMENTS MyEvents IN "InteroperCL.Class1"

 PROCEDURE MyEvents_IsCompleted( source as object,respStr as string,  isComplete as Boolean) AS VOID

*Listen for messages from the publisher event OnIsCompleted, which is based on the delegate FormEventHandler

  IF isComplete

* source.ObjName.iscompleted=.t.

* source.ObjName is the VFP form object in our case

source.ObjName.respStr =respStr

*the form respStr_assign method will udate the grid




   *this is a new datasession, you mustn't create the cursor here!!!




Listing 2. The client transmitter of the messages generated by the COM server

The VFP form

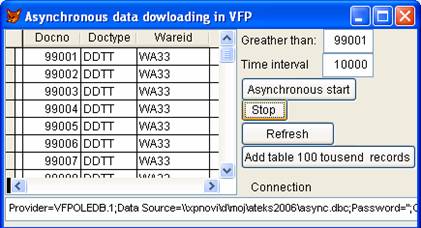

Figure 1. The asynchronous VFP form


In this section I present some basic elements of the VFP form in Figure 1. The click event of the button Asynchronous start is in Listing 3.


Local loEx as Exception

Local loIH as "InteroperCL.Class1"

LOCAL loEvents as "MyEvents"

LOCAL name as integer

LOCAL connect as string

LOCAL lnt as XMLTable


*"Provider=VFPOLEDB.1;Data Source=\\xpnovi\d\moj\ateks2006\async.dbc;Password='';Collating Sequence=MACHINE;"




IF VARTYPE( thisform.loIH)!="O"

thisform.loIH= CREATEOBJECT("InteroperCL.Class1")


IF VARTYPE( thisform.loEvents)!="O"

 thisform.loEvents = NEWOBJECT("MyEvents","MyEvents.prg")


loIH=thisform.loIH  && The form has a property loIH

*loIH.IsCompleted= .F.

loIH.Connect =connect


loIH.ObjName=thisform && we pass the object form to the COM object for later reference

loEvents=thisform.loEvents  && The form has a property loWvents

*connect the interface (OLE public class) to the created COM object

*The COM object interface will pass the events to the object MyEvents, which pass the data to this form.


loIH.CallDb("test1",name)   && start the database call


oErr.UserValue = "CATCH message: Error."

      =Messagebox('Error. The error message is on the screen).')


If Vartype(oErr)='O'

      Activate Screen


      ?[  Error: ] + Str(oErr.ErrorNo)+Str(oErr.Lineno) + oErr.Message


Listing 3. The Click method that start the periodical asynchronous call


In the Click method I have created the object loevents based on the VFP class MyEvents and loIH is an instance of the COM. The command:


bind the client events (loevents) with the server (loIH). The command:


start the CallDB method on the COM object and implicitly is started the call to the database.

When the download is done and the COM object get the results, the event OnIsCompleted is fired, the results are transmitted to the object loevents and the procedure MyEvents_IsCompleted is executed. If the received variable iscomplete (Listing 2) has a value of .T. (thru), the procedure updates the forms property respStr:

source.ObjName.respStr =respStr,

where source.ObjName is the name of the form.



*To do: Modify this routine for the Assign method

los= m.vNewVal

IF LEN(TRIM(los))=0

MESSAGEBOX("Start first the Asynchronous proces or no data is aviable."+ los)



LOCAL loXML As MSXML2.DOMDocument.4.0



LOCAL oXMLAdapter as XMLAdapter

oXMLAdapter = CreateOBJECT('XMLAdapter')

oXMLadapter.IsDiffgram= .F.

oXMLadapter.Attach ( loXML)

*current active row and column



IF USED(oXMLadapter.Tables.Item(1).Alias)

SELECT (oXMLadapter.Tables.Item(1).Alias)




*just to inform the data was refreshed ew change the back color

IF thisform.grid1.BackColor=RGB(255,255,255)





SELECT (oXMLadapter.Tables.Item(1).Alias)



thisform.BindControls =.t.

IF actRow>0 AND actCol>0



thisform.iscompleted =.t. && to be used with the assign method


Listing 4. The respStr_assign method


Next the method respStr_assign (Listing 4) is executed. Certain actions should be performed at the form level as the result of the received string including the dataset generated by the COM object as the result of the call to the database. With the XMLAdapter object I built a cursor from the response string, bind the grid datasource to this cursor and activate the »old« grid row and cell.



On the first load of a VFP form we can produce large and suffocating network traffic having blocked entire VFP client application. With the .Net Framework asynchronous and COM capabilities we can unable VFP to have continuously (in small time interval) refreshed data on the VFP form. You can also enlarge the functionality of the presented COM object by adding it the HTTPRequest and HTTPResponse class and retrieve data from the database located on the Internet. In another approach you can elaborate the COM and create an asynchronous driver like the synchronous VFPOLEDB.



1) Asynchronous Use of VFP, M.A. Mazzarino

2) Handling .NET Events in Visual FoxPro via COM Interop, R.Strahl

3) Compare Events and Delegates in VFP and .NET, C. Lassala and M. Egger

4) Multi-threaded VFP applications, R. Rusanu

5) How to Execute a Stored Procedure in a VFP Database with the VFP ...

6) A FoxPro Server, L. Pinter

7) .NET Delegates: Making Asynchronous Method Calls in the .NET Environment, R. Grimes


Downloads note. You have to adjust the path in the connection string in the downloaded projects: InteroperCL-C#.Net and async-VFP.
